Typical Sell Flow

Overview

This document describes the standard cryptocurrency sell flow using Binance Connect Prime service. The sequence diagram below illustrates the interaction between partner systems and Binance Connect Prime Open APIs throughout the sell process.

Participants

• User (u): End user selling cryptocurrency
• Merchant (m): Partner's system/application
• Connect Prime (c): Binance Connect Prime service
• Binance Asset SAPI (a): Binance Asset Service API for balance management

Flow Steps

1. Get Crypto List for Sell

• User initiates the sell flow
• Merchant forwards the request to Connect Prime
• Connect Prime returns the list of supported cryptocurrencies for selling
• Merchant returns/displays the crypto list to the user

2. Get User's Crypto Balance

• The merchant queries Binance Asset SAPI for the user's balance
• Binance Asset SAPI returns balance details
• The merchant displays the balance to the user

3. Cryptocurrency Selection

• The system sets the default cryptocurrency by user's crypto balance or default option
• The user selects a cryptocurrency from the available list

4. Get Trading Pair Info

• The user/merchant requests trading pair information
• The merchant requests supported trading pairs from Connect Prime
• Connect Prime returns trading pair information
• The merchant returns/displays the trading pair info to the user

5. Display Available Fiat Currencies

• The system displays the available fiat currencies
• The user selects the target fiat currency to receive

6. Get Fiat and Crypto Amount Limits (optional)

• The merchant requests fiat and crypto amount limits from Connect Prime
• Connect Prime returns the limits
• The merchant side can validate the user's input amount before requesting a quote and displaying valid range to the user
  • you can skip this step if not needed and quote API will handle the validation

7. Get Quote

• The user enters the sell amount
• The merchant requests a real-time quote from Connect Prime
• Connect Prime returns quote details
• The merchant displays the quote information to the user

8. Execute Quote

• The user confirms and proceeds
• The merchant sends an execute quote request to Connect Prime
• Connect Prime returns an order ID; the order is created

9. Transaction Status Monitoring

• System enters a polling loop to monitor transaction status
• Merchant continuously queries Connect Prime for transaction details
• Connect Prime returns current transaction status
• Status updates are relayed back to the user
• Process continues until transaction is completed
• Connect Prime sends webhook notifications to Merchant for status updates

10. Transaction Completion

• Once the sell transaction is completed, Connect Prime will invoke merchant side's transfer API to transfer the fiat amount to the user's account
• Refer to Merchant-side API Requirements for more details

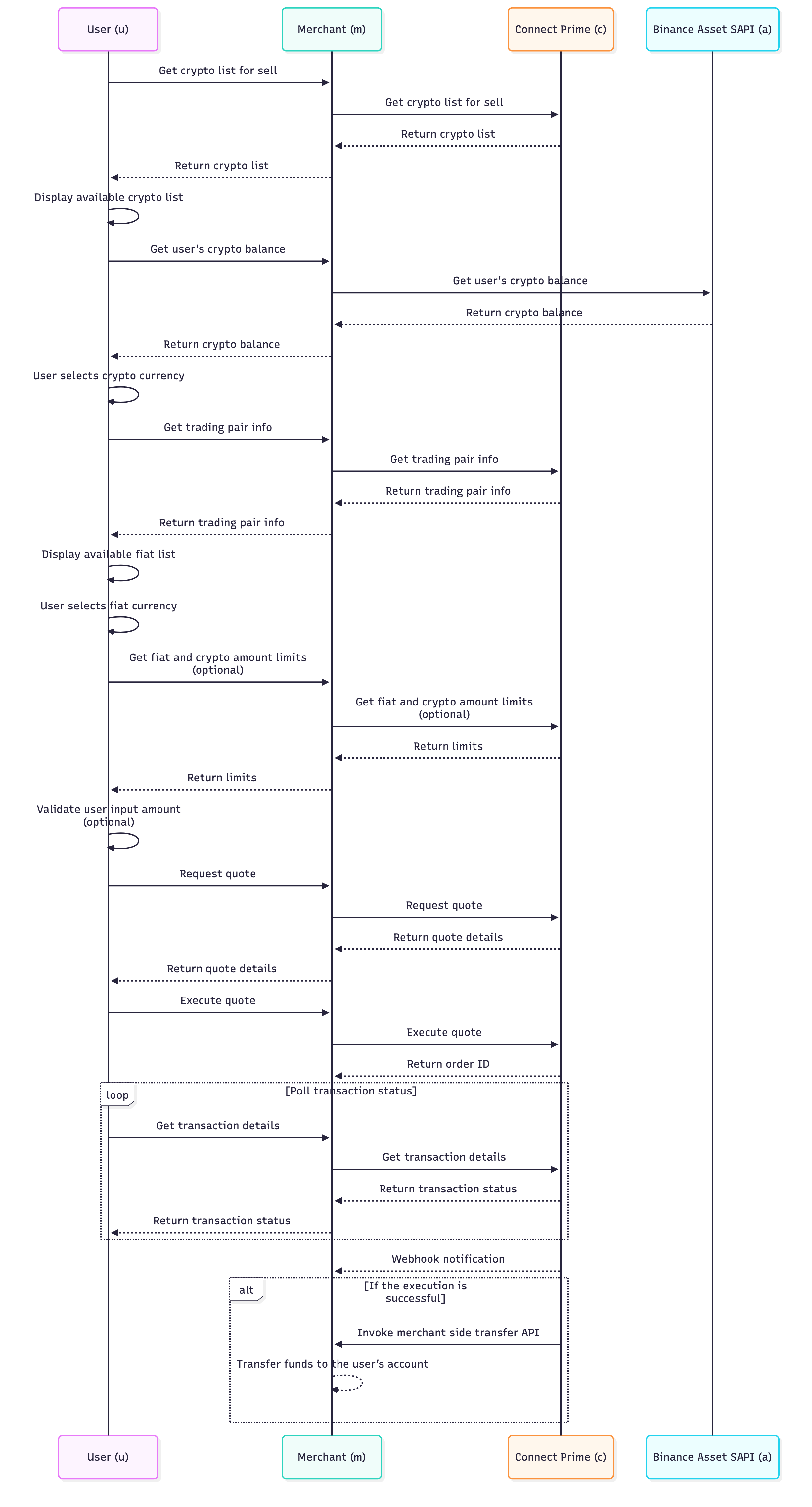

Sequence Diagram
