Basics

Copy page

API request signing

The private key and public key are generated by the partner (client). The partner (client) should keep the private key securely and privately, and inform Binance Connect of the public key, then Binance Connect will be able to verify the API requests from the partner (client).

Generating key pairs

You can use code or the OpenSSL tool to generate key pairs, depending on which one you prefer.

Generating key pairs with code

The example code below shows how to generate public and private keys:

Code
import org.apache.commons.codec.binary.Base64;
import java.security.KeyPairGenerator;
import java.security.KeyPair;

KeyPairGenerator generator = KeyPairGenerator.getInstance("RSA");
generator.initialize(1024);
KeyPair kp = generator.generateKeyPair();

String privateK = Base64.encodeBase64String(kp.getPrivate().getEncoded());
String publicK = Base64.encodeBase64String(kp.getPublic().getEncoded());
System.out.println("-----Generating private key-----");
System.out.println(privateK);
System.out.println("\n\n-----Generating public key-----");
System.out.println(publicK);

Generating key pairs with OpenSSL tool

Please follow the steps below:

1. Generate private key with command:

Code
   openssl genpkey -algorithm RSA -out private_key.pem -pkeyopt rsa_keygen_bits:1024

2. Extract the DER encoding of the private key with command:

Code
   openssl rsa -in private_key.pem -outform DER -out private_key.der

3. Convert the DER-encoded private key to Base64 encoding with command:

Code
   openssl base64 -in private_key.der -out private_key.base64 -A | tr -d '\n' | sed 's/\//\//g'

*Please keep the file "private_key.base64" generated by this command securely and privately. The private key will be used to generate the signature.

4. Generate public key with command:

Code
   openssl rsa -in private_key.pem -pubout -outform DER -out public_key.der

5. Convert the DER-encoded public key to Base64 encoding with command:

Code
openssl base64 -in public_key.der -out public_key.base64 -A | tr -d '\n' | sed 's/\//\//g'

*Please send the file "public_key.base64" generated by this command to Binance Connect for use in verifying API requests.

Generating signature and set HTTP headers

The signature is generated by request body (json string), timestamp and partner (client) private key, the following is the example code:

Code
import org.apache.commons.codec.binary.Base64;
import java.security.KeyFactory;
import java.security.PrivateKey;
import java.security.Signature;
import java.security.spec.PKCS8EncodedKeySpec;
import org.springframework.http.HttpHeaders;
import org.springframework.util.MultiValueMap;

public class TestRequestSigning {
    public static void main(String[] args) throws Exception {
        MultiValueMap<String, String> httpHeaders = new HttpHeaders();
        String clientPrivateKey = "Your client private key";
        String jsonBody = "{\n" +
                "\t\"id\": \"10000001\",\n" +
                "\t\"name\": Jack\n" +
                "}";// Please use utf-8 encoding if body contains special characters such as emoticons.
        Long timestamp = System.currentTimeMillis();
        PrivateKey cPrivateKey = generatePrivateKey(clientPrivateKey);
        String signature = sign(jsonBody + timestamp.toString(), cPrivateKey);
        httpHeaders.add("X-Tesla-Signature", signature);
    }

    public static PrivateKey generatePrivateKey(String privateKey) throws Exception {
        PKCS8EncodedKeySpec privateKeySpec = new PKCS8EncodedKeySpec(Base64.decodeBase64(privateKey));
        KeyFactory keyFactory = KeyFactory.getInstance("RSA");
        return keyFactory.generatePrivate(privateKeySpec);
    }

    public static String sign(String srcData, PrivateKey privateKey) throws Exception {
        Signature signature = Signature.getInstance("SHA256withRSA");
        signature.initSign(privateKey);
        signature.update(srcData.getBytes());
        return new String(Base64.encodeBase64(signature.sign()));
    }
}

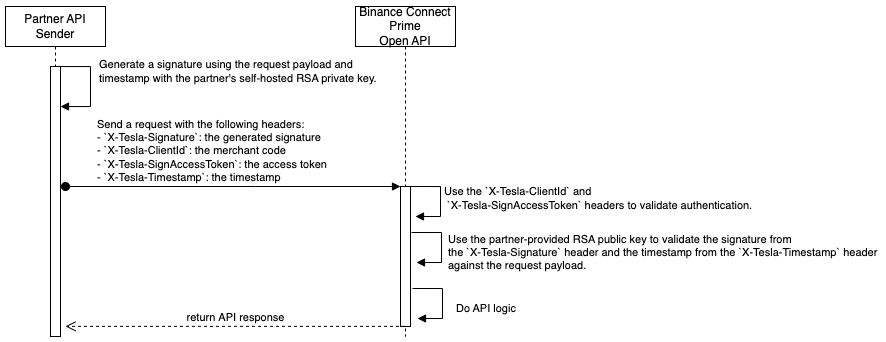

How signature works

The signature flow is as follows:

Use Postman to sign and test API requests

1. Configure environment variables

Create an environment (such as QA) in Postman and add these environment variables for subsequent reference: base_url, client_id, access_token, private_key. Please note that the format of the value of private_key should be like this:

Code
-----BEGIN PRIVATE KEY-----
MIICdwIBADANBgkqhkiG9w0BAQEFAASCAmEwggJdAgEAAoGBANAAMnEOR1NIBIbwnDwHu19L/Jv0s4eEDHEjQ24OHjkHQ3CHWj4Ik4iFZyX9MvQsmZEzkDx8mJkkgAmIGjYkkZhEny1z6GPW55+ruo4dLYIRurESYRufZxI49BtIeLOOwL9ZFOnVfxBh8T7xyCvMmMcF93Suv6RcbTWXk8EC0pkXAgMBAAECgYA2cXbChNxCfj1BHMWoKNXwkbEjGR/MvtGK45IIwoVCpBYQ5DzIs/H58AEZvnaR1wKzMO32Bx7iJt2koQ1LUrMQ0UB9ydxhP2BogHvt9ZDI49+UPkTS92HMgPixi6O1HE6nOOu4rHR+6j7pdGcB+dneTwgPngWdk71VsbX8ZzPZsQJBAOGPmztuIpgXCxPlyLWCuEa9zTKc9lHiBe65ZN1jvUq1GCLClVcx/oEtEb9CCo7u1vacr/1sGFPxgBdvzv2y8HMCQQDsEfGEhp/79keDnjvJZ+TLfP4r+u1Gw0gAuj4Cay316K3f3q2OEqNm9lMNzg5dVYb78sVRd+guZ88u9etRBX/NAkAheIrjdcNiaED3keiHrr8jmDSj5xDSM8UHmLEz/QHw3RCYz+ETUFLg3kw84lLoxN5XOAcRhwHRKwwD7k577RqrAkEAhBiGTOIII7Vrzvp7+fdoz3ThxTpkC3S6la2hhTj0PuY0ZVD1TMqhJLwxPUhQQWnaXqE6SJwQD+eGx4BUbMHnAQJBAKomO+rK7ycU9OSRpEbPt2yQskwCcY2fiLgDy0Sy1hWmp/e5Cowt2Uyzp6uk/4QwMkfFApYzWtvjrnRkru19rMw=
-----END PRIVATE KEY-----

2. Set up library postman-util-lib for Postman

Add a Postman global variable named pmlib_code, and set the value of it as the source code in the library bundle content.

3. Configure HTTP headers: add Pre-request scripts to collection or request of Postman

Add the following code to the Pre-request script:

Code
eval(pm.globals.get("pmlib_code"));

pm.request.headers.add({
  key: "Content-Type",
  value: "application/json",
});

pm.request.headers.add({
  key: "X-Tesla-ClientId",
  value: pm.environment.get("client_id"),
});

pm.request.headers.add({
  key: "X-Tesla-SignAccessToken",
  value: pm.environment.get("access_token"),
});

const timestamp = new Date().getTime();
let jsonBody = new String();
if (pm.request.body.raw) {
  jsonBody = pm.request.body.raw;
}
const dataToSign = jsonBody + timestamp.toString();
const privateKey = pm.environment.get("private_key");

const sha256withRSA = new pmlib.rs.KJUR.crypto.Signature({ alg: "SHA256withRSA" });
sha256withRSA.init(privateKey);
sha256withRSA.updateString(dataToSign);
const signature = pmlib.rs.hextob64(sha256withRSA.sign());

pm.request.headers.add({
  key: "X-Tesla-Signature",
  value: signature,
});

pm.request.headers.add({
  key: "X-Tesla-Timestamp",
  value: timestamp.toString(),
});

4. Everything is ready, feel free to test the API requests!
