Webhook

Whenever a key event (currently only "order status change") occurs, Binance Connect will send a webhook message, and the partner (client) can receive this message at the webhook callback url and react accordingly, such as updating order data and frontend UI.

Request Headers

Field	Type	Remarks
X-BN-Connect-Timestamp	timestamp	timestamp
X-BN-Connect-Signature	string	SHA256withRSA(requestBody + X-Connect-Timestamp)
X-BN-Connect-For	string	Same with your client id (X-Tesla-ClientId)

Request Body

Field	Type	Remarks
webhookEventType	string	fixed value: prime_order_event
orderId	string	Binance order ID
clientOrderId	string	Client side order ID
direction	string	BUY or SELL
fiatCurrency	string	Fiat currency
cryptoCurrency	string	Crypto currency
fiatAmount	decimal	Fiat amount
cryptoAmount	decimal	Crypto Amount
price	decimal	Price. 1 crypto currency = {price} fiat currency
status	string	FILLED/FAILED
createTime	timestamp	Order creation time (UTC)
settleTime	timestamp	Settlement time (UTC)

Response Body

• HTTP status code is 200
• Response body is in JSON format.

Field	Type	Remarks
returnCode	string	SUCCESS or other code you wish to return to Binance Connect
returnMessage	string	the message you wish to return to Binance Connect

How signature works

The encryption/decryption and verification process of webhook is exactly the opposite/mirrored of API request process. The sender and receiver of the two are opposite, but they are both processes that signed by the sender with a private key and verified by the receiver with a public key.

For API requests, the partner (client) generates a pair of keys. The private key is kept securely and privately by the partner (client). Then the partner (client) uses the private key to sign when initiating API requests. The public key is shared to Bianance Connect, with which Binance will verify the signature of the API request to ensure that the request is indeed initiated by the partner (client).

For webhook, it's an opposite/mirrored process. Binance Connect generates a pair of keys. The private key is kept securely and privately by Binance Connect. Then Binance Connect uses the private key to sign when initiating the webhook message. The public key is shared to the partner (client), with which the partner (client) can verify the signature of the webhook message to ensure that the message is indeed initiated by Binance.

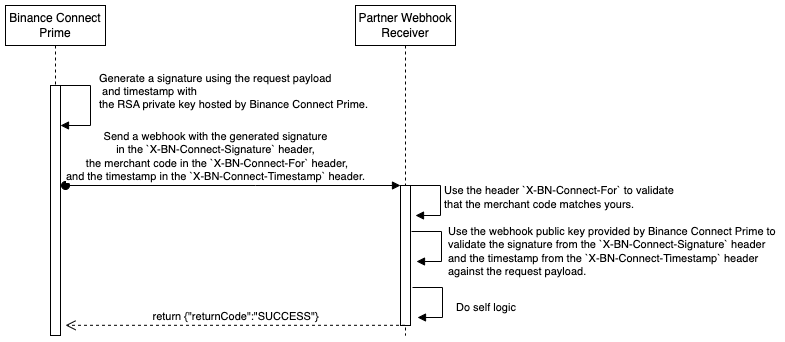

The webhook signature flow is as follows:

Verify signature

As mentioned above, Binance Connect initiates a webhook request to the webhook callback url provided by the partner ( client). And the partner (client) should verify the identity of the request initiator based on the public key provided by Binance Connect.

The example code below shows how to verify signature with public key:

Code
public static boolean verify(String srcData, PublicKey publicKey, String sign) throws Exception {
    Signature signature = Signature.getInstance("SHA256withRSA");
    signature.initVerify(publicKey);
    signature.update(srcData.getBytes());
    return signature.verify(Base64.decodeBase64(sign.getBytes()));
}

Example

Request Body:

Code
{
  "webhookEventType": "prime_order_event",
  "orderId": "1234567890",
  "clientOrderId": "myOrder001",
  "direction": "BUY",
  "fiatCurrency": "EUR",
  "cryptoCurrency": "BTC",
  "fiatAmount": 100,
  "cryptoAmount": 0.00102181,
  "price": 97849.27,
  "status": "FILLED",
  "createTime": 1692951399,
  "settleTime": 1692954999
}
